The 2026 Fuel EX 5 Gen 7 M LITHIUM GREY/TREK BLACK SPLATTER is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.

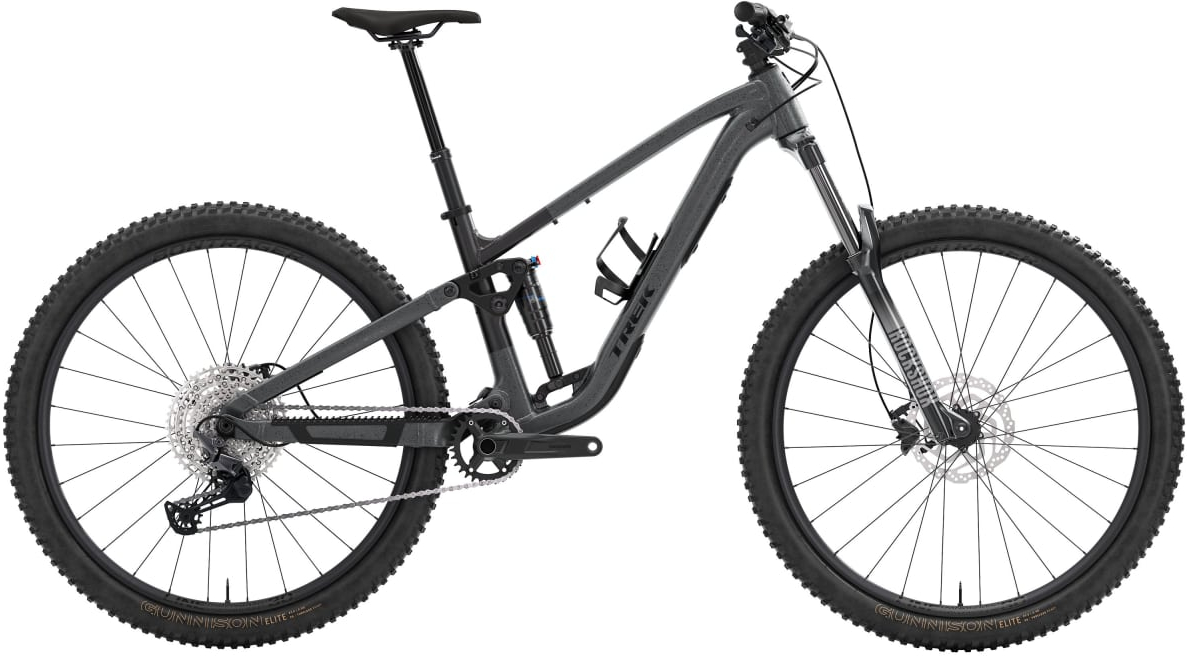

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.
Adapt, rip, repeat
Only you can define your perfect trail bike - that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models - both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
The bikes displayed on our website are just a fraction of what is available and represent only the bikes we have available from stock right now. Beyond this there are many more options. We have a scheduled program of deliveries with our suppliers so new bikes are arriving with us every day, it may be that what's arriving soon could be just the bike you are looking for. Likewise the brands we work with warehouse their own stock of bikes giving us access to a huge range of models often available with short delivery times.
So if you are looking for a bike and don't find quite the right things here, or if you have any questions concerning, spec, availability, type or size of bike then we recommend you get in touch with a member of our team.
Our staff can access supplier stock information, search our scheduled stock deliveries and offer help and advice on your purchase. We have expert bike fitters and access to all supplier technical information to help ensure the bike you choose is the right style and a great fit for you.
You can reach us via email on [email protected] or call 01970 626061. Alternatively, why not pay us a visit at 65 North Parade, Aberystwyth where you can view a wide range of bikes, clothing and accessories and chat with one of our team about your requirements.
To learn more, please visit our 'Buying from us' page https://www.summitcycles.co.uk/buyingfromus/
To order via our website you will need to pay using our payment gateway provider Opayo.
We do however offer several other methods of payment for in-store purchases. These include finance options using Klarna (and V12) and purchases via a Cycle to Work Scheme.
PLEASE NOTE Web orders are not fully confirmed until we issue dispatch or collection notification, we reserve the right to refuse or cancel any order and reverse or refund any associated payment.
Sale, offer & discounted PURCHASES Finance (Klarna/V12) and Cycle to Work Scheme may not be used as payment methods for the purchase of discounted, offer or items on sale. These payment methods are only available for the purchase of items at full retail price.
Klarna purchases are subject to status and terms and can only be used for purchases made in store, not via our website at present. If you would like to pay using Kllarna you will need to contact us directly, either via email, phone or visiting us in store to discuss your purchase and make sure that it is eligible for this payment method. More information on Klarna payment can be found here: https://www.klarna.com/uk/
We work with all major providers of cycle to work schemes but not all bikes, clothing and accessories that we sell is offered or eligible for purchase via this payment method. If you would like to use Summit Cycles for a Cycle to Work scheme purchase you will need to contact a member of our team to discuss this. You can email us using [email protected] or call 01970 626061.
Further information about cycle to work schemes can be found on our cycle to work scheme page: https://summitcycles.co.uk/cycle-to-work-scheme/
For more information about buying from us please view our full terms and conditions: https://www.summitcycles.co.uk/terms-conditions/
We do not currently offer to ship bikes purchased via our website, these must be collected from our store. If you see a bike that you are interested in and are unable to collect from us then it may still be worth getting in touch with us to explore further options.
Bikes purchased via our website will be made ready for store collection. This can take a few days depending on where the bike is located. Some bikes will need to ship from a supplier but if this is the case the expected lead time for delivery to us will be displayed on our site. We also hold stock at an off-site storage location and transfer can take a day or so. When we have the bike it will be scheduled for assembly and safety checks with one of our CYTEC mechanics. Once this is complete we will send a final confirmation that the bike is ready for collection and you can then visit the store to pick it up.
With bike purchases, a member of our team will usually contact you prior to processing to check sizing and other details. For bikes in our stock the process from order to collection usually takes 3 or 4 working days but can be quicker sometimes or longer if the bike is shipping to us from a supplier. A member of our team will be able to give you more information if required.
Once your new bike is ready for collection we will get in touch with you to arrange a convenient time for pickup. Collection is from our store at 65 North Parade, Aberystwyth. When you come to collect we may ask for you to present proof of identity for security reasons. A member of staff will check size and personal adjustments like saddle height and can provide advice on care and service arrangements so please allow a little time for the handover process.
| Frame | Size M, Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, l |
| Wheel Size | Front 29 / Rear 29 |
| Wheels | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve Shimano TC500 alloy, CentreLock, 110x15 mm thru axle Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Tyres | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Shifter | Shimano Deore M6100, 12-speed Shimano Deore M6100, 12 speed |
| Rear Derailleur | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55 mm chain line, 170 mm length Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Front Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper // Shimano hydraulic disc, MT201 lever, MT200 calliper Shimano hydraulic disc, MT201 lever, MT200 caliper // Shimano hydraulic disc, MT201 lever, MT200 caliper Shimano RT10, CenterLock, 180 mm Max brake rotor size |
| Rear Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper // Shimano hydraulic disc, MT201 lever, MT200 calliper Shimano hydraulic disc, MT201 lever, MT200 caliper // Shimano hydraulic disc, MT201 lever, MT200 caliper Shimano RT10, CenterLock, 180 mm Max brake rotor size |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Weight | 17.02 kg |
| Colours | LITHIUM GREY/TREK BLACK SPLATTER |
| Sizes | M |
| Brand | Trek |
| Model Year | 2026 |
| Barcodes | 197216226093, 197216226130 |
| SKUs / Part Numbers | 5335770, 5335774 |
